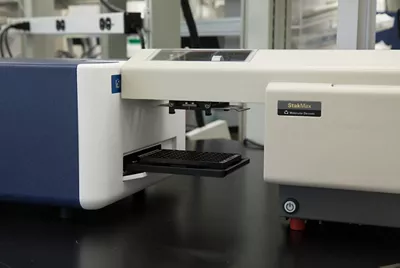

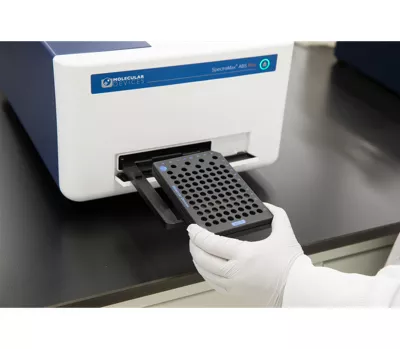

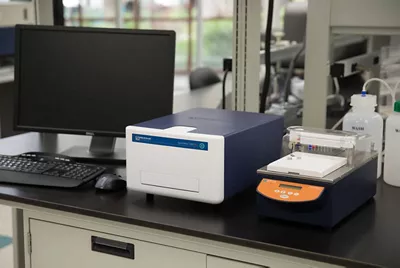

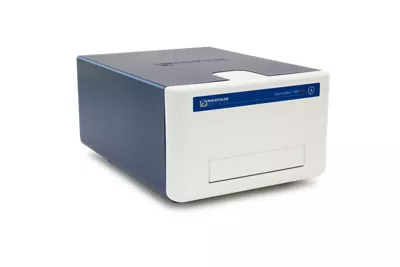

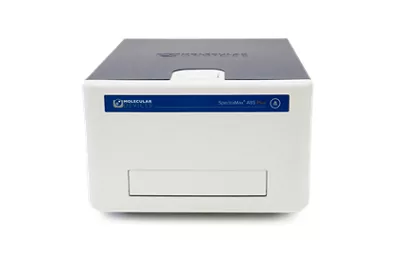

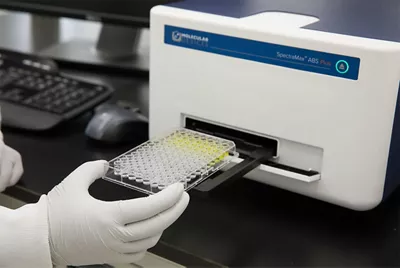

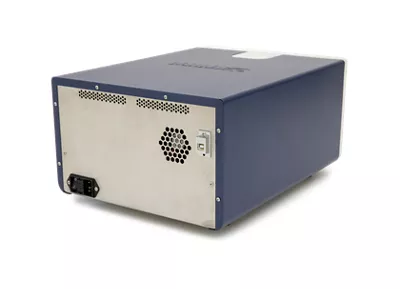

SpectraMax® ABS and ABS Plus Absorbance ELISA Microplate Readers

Filterless readers provide consistent results with steady temperature regulation

The SpectraMax® ABS and ABS Plus absorbance microplate readers provide the flexibility, sensitivity, and convenience for a wide range of assays such as ELISAs, microbial growth, and protein quantitation. Both readers feature an 8-channel read head for fast reads and a subset feature, the temperature independent PathCheck sensor that automatically normalizes and ensures accurate absorbance values by detecting pipetting errors. Combined with a wide application base, industry-leading SoftMax® Pro Software and validation tools, these readers fit in every lab and every budget.

• Eliminate filters

  Eliminate the need for purchasing and changing out filters with a monochromator-based wavelength selection for visible and UV-visible absorbance.

• Get consistent results

  Mix samples thoroughly in microplate wells with user-programmable Automix feature and monitor temperature-sensitive reactions with consistent temperature regulation from ambient to 45°C.

• Integrate with ease

  Measure micro-volumes: Compatible with the SpectraDrop™ Micro-Volume Microplate, enabling high-throughput measurement of low volumes (<5um) – ideal for DNA, RNA and protein quantification.

Features

• Pipetting errors eliminated

  This reader utilizes Molecular Devices' temperature independent PathCheck Sensor technology to measure the depth (optical pathlength) of samples in a microplate. It also allows for the elimination of standard curves.

• Optimized optical path

  The reader’s unique quartz fiber optic system minimizes stray light for precise readings across a microplate. The spectral resolution ensures accuracy of DNA absorbance measurements.

• Eight-channel optics

  The optical design of the reader enables simultaneous detection of 8 wells. The eight-channel system delivers both precision and speed across the microplate.

• Dual wavelength reads

  The reader delivers high performance with round-bottom, flat-bottom or half-area well plates. Dual wavelength readings report the actual absorbance at each wavelength making data analysis convenient.

• Flexibility to read a variety of plate formats

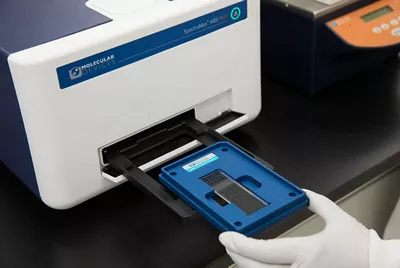

  SpectraMax® Absorbance Microplate Readers can run both cuvette-based and microplate reader applications on the same instrument. Read one sample or up to 384 in a single plate read using any standard cuvette, or 96- or 384-well microplate.

• Validation made easy

  Verify the accuracy of your absorbance measurements with the SpectraTest® ABS1 Absorbance Validation Plate, using NIST-traceable standards. Testing can be done in your own lab, on your own schedule.
