DMIL Fluorescence for Fluorescence Cell Culture with Documentation

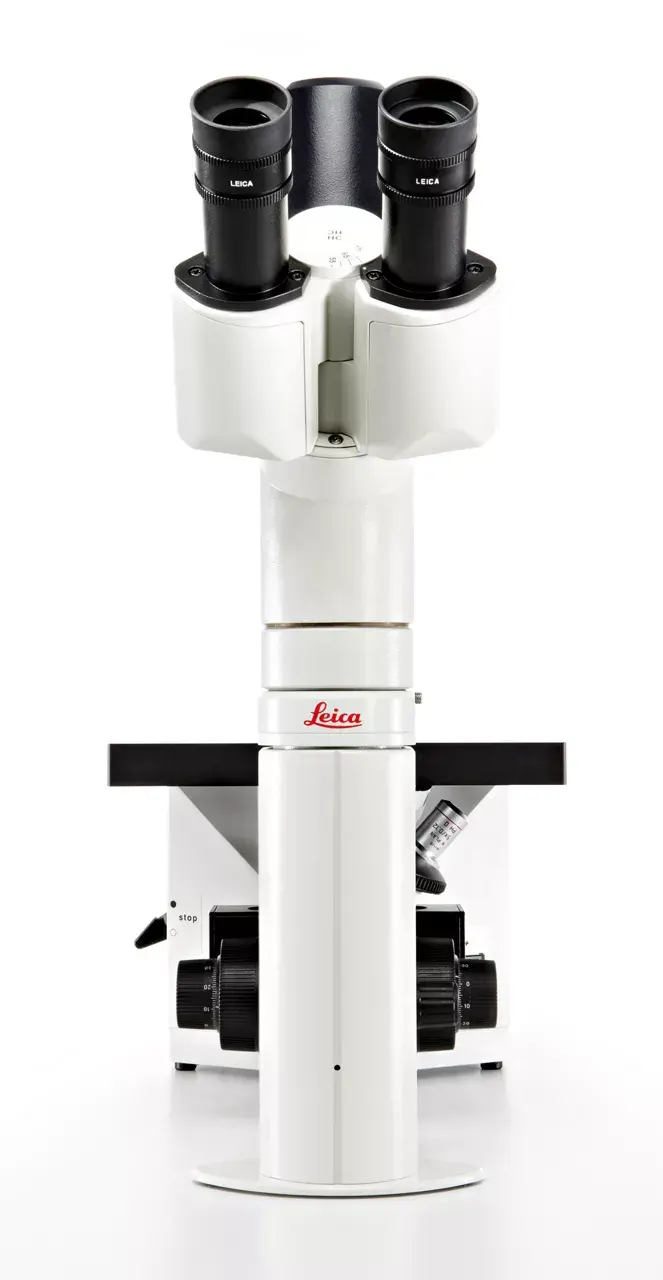

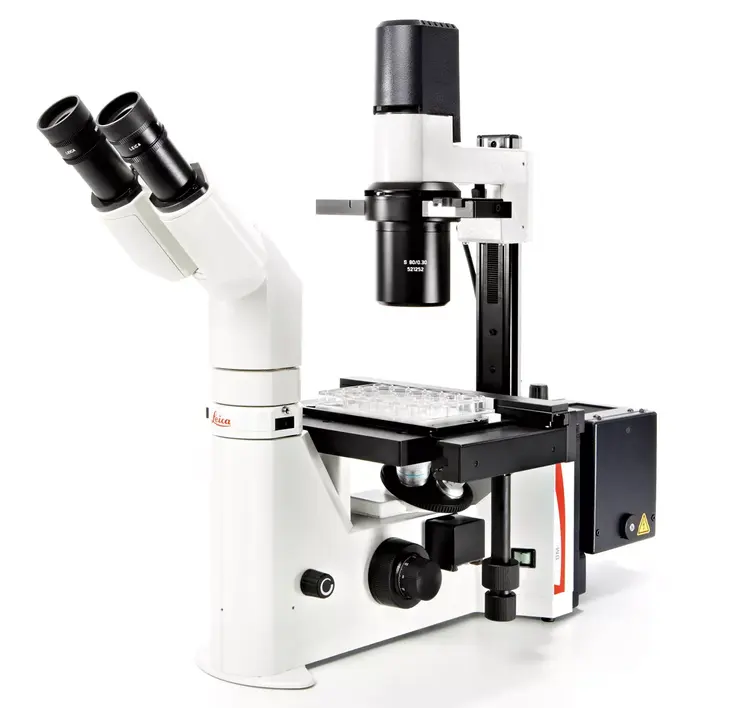

The DM IL LED, equipped with a K3C camera, is tailored for phase contrast and fluorescence imaging of cell cultures and individual cells. The system and the intuitive LASX software document seamlessly routine tasks in cell culture labs like confluence estimation and transfection efficiency checks. Elevate your cell culture research with the DM IL LED, featuring a color camera for seamless image capture and providing superior fluorescence capabilities for enhanced visualization and insights into dynamic cell culture phenomena.
Features
- DM IL LED Fluo Incident Light Fluorescence
Transmitted Light

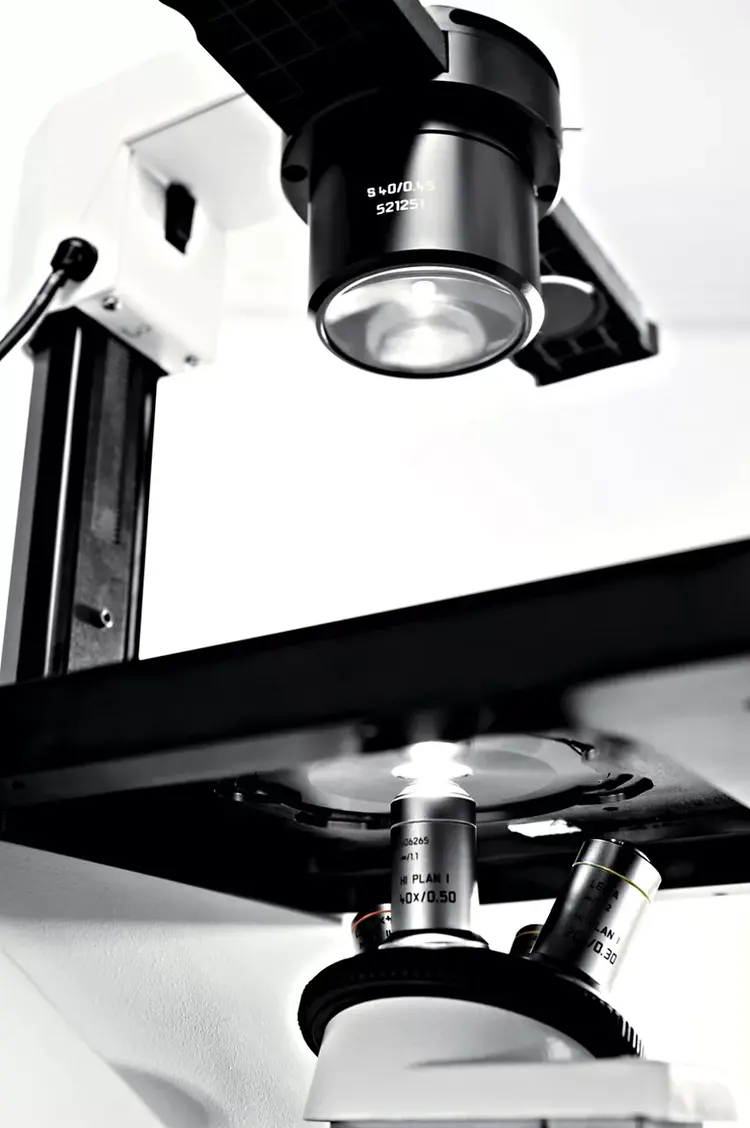

- Condenser S40 / 0.45
- Slider for lightrings S40, complete
Objective
- HI PLAN 10x/0.25 PH1
Documentation Port
- Trinocular tube HC ILT
- Eyepiece HC PLAN 10x/20 BR.
- Eyepiece HC PLAN 10x/20 BR.M
Features
- Camera port for all Leica digital cameras and common camera models
- Manual fluorescence with three filter cubes, Integrated shutter & optionally LED, classic mercury illumination or fiber optic coupling
- Whether you work with thin sections or thick specimens, phase and modulation contrast produce a brilliant microscopic image for all specimens and applications
| Applications | Cell Biology, Cell Culture |
| Microscope Group | Light Microscope |
| Microscope Types | Inverted Microscope |
| Contrasting Methods | Brightfield, Fluorescence, Integrated Modulation Contrast, Phase Contrast |
| Microscope Camera Option(s) | Optional |
| Objective Lens Magnification | 5X, 25X, 50X |
| Objective Lens Class | HI PLAN, PL FLUOTAR |
| Objective Thread | M25 |
| Condenser | S40 |
| Has Eyepiece | Yes |
| Microscope Stage Type(s) | Manual |
| Long Working Distance | Yes |
| Microscopy Software Available | 2D Anaylsis, Documentation, Live Cell Imaging, Multichannel Acquisition, Time Lapse Imaging |
Leica K3C
11547114
1
QTY
C-Mount HC 0.55x
11541544
1
QTY
Adapter sleeve for DM IL and DM1000
11504127
1
QTY
Filter System GFP ET, size S
11504174
1
QTY
Microscope Objective HI PLAN 4x/0.10 PH0
11506408
1
QTY
Microscope Objective HI PLAN I 20x/0.30 PH1
11506272
1
QTY
Microscope Objective HC PL FL L 400 60 CORR PH2
11506203
1
QTY
Leica DM IL LED Fluo
11521265
1
QTY
Condenser S40 / 0.45
11521251
1
QTY
Microscope Objective HI PLAN CY 10x/0.25 PH1
11506402
1
QTY
Trinocular tube HC ILT
11521249
1
QTY
Eyepiece HC PLAN 10x/20 BR.
11507801
1
QTY
Eyepiece HC PLAN 10x/20 BR.M
11507802
1
QTY
Dust cover for DM IL, ILM
11512596
1
QTY
4-fold Lightring Slider for S40
11526113
1
QTY
CoolLED pE300lite, SB direct
11533491
1
QTY
U.K. power cord
13613902
1
QTY
Service Installation
9I_CM_CLASS_C
1
QTY
