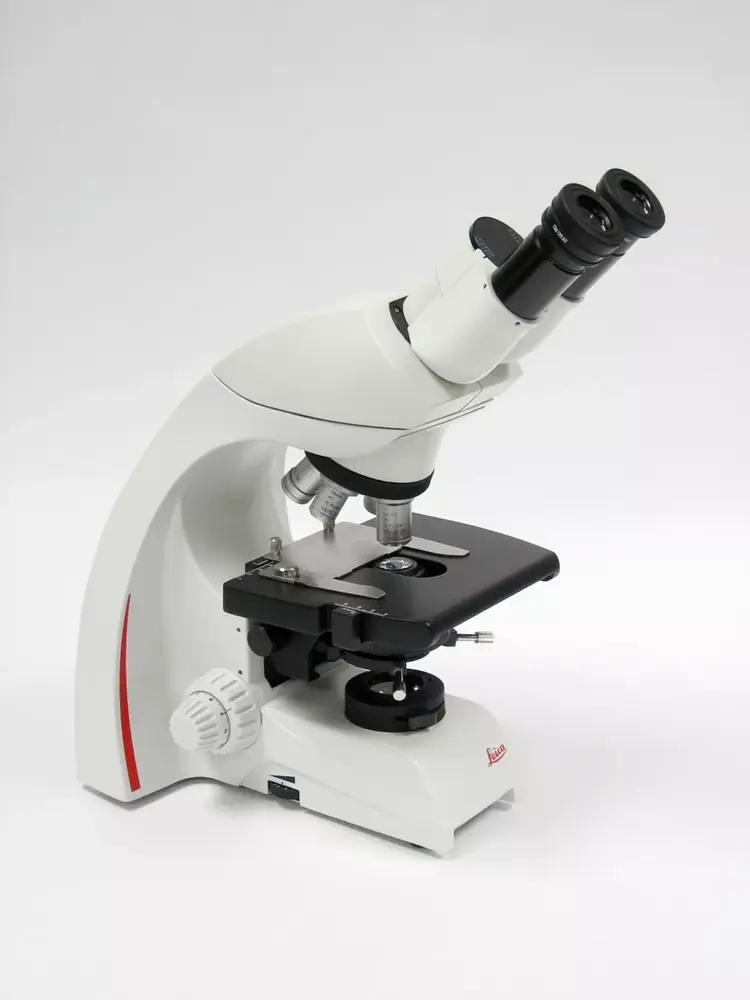

DM750 Educational Microscope, Koehler Illumination and Premium Optics
The DM750 microscope stands as a pinnacle in educational microscopy, integrating advanced features with premium optics. Tailored for enriching learning experiences, it features Koehler illumination for unparalleled sample visibility and premium optics for crystal-clear observations. Specifically designed for educators and students, the DM750 enhances the classroom journey by combining educational functionality with top-notch imaging capabilities. Immerse your learning environment in clarity, convenience, and educational excellence with the DM750.
DM750 Educational Microscope, Koehler Illumination and Premium Optics
The DM750 features EZStore™, which includes an integrated handle and cord wrap for easy carrying, lifting, and protection against damage to microscope components. Additionally, it is equipped with weighted focus knobs for ergonomic use, an auto-off function after 2 hours of inactivity, and an open condenser mount that allows for versatility in using a wide range of condensers for different contrast techniques. The DM750 is also built on an infinity optical platform, making it compatible with various accessories and digital imaging solutions.
- DM 750 Right Hand Stage Stand with Koehler Illumination and 4 position nosepiece
- Add on lens for condenser
- Universal Power Supply
- USB Power with integrated connector
- Mechanical stage with non-extending rack and slide holder
- Abbe Condenser 0.9Dry/1.25 Oil with slot for Phase and Darkfield Sliders
- Disc Diaphragm with colored labels for matching objective magnifications
- LED illumination with Auto off
- Built in handle and cord wrap
- Manual 45 degree Binocular Tube with locking mechanism for eyepieces
- 10X/20 eyepiece w/eyeguard
- 10X/20 focusing eyepiece w/eyeguard
- HI Plan 4X/0.10NA, 18.0mm W.D.
- HI Plan 10X/0.25 NA, 12.0mm W.D.
- HI Plan 40X/0.65 NA, 0.36mmW.D.
- HI Plan 100x/1.25 NA, 0.10mm W.D.
- Oil Immersion, 10ml oil
- Dust cover
Features
- Koehler field diaphragm available as an option for optimum illumination and contrast
- Time delay shutoff saves energy by automatically turning off the illumination after 2 hours of no use
- Variety of viewing tubes provides free rotation while securely fixed to the stand
| Applications | Clinical Pathology, Education |
| Microscope Group | Light Microscope |
| Microscope Types | Upright Microscope, Light Microscope |
| Contrasting Methods | Brightfield |
| Microscope Camera Option(s) | Optional |
| Specimen Type | Glass Slides |
| Power Supply | 240 V |
| Control | wheel |
| Dust Cover | Yes |
| Maximum X-Axis Field of View | 5 mm |
| Maximum Y-Axis Field of View | 5 mm |
| Maximum Object Field | 5.6 mm |
| Optical System | Infinity |
| Objective Lens Magnification | 20X, 10X, 4X, 100X |
| Objective Lens Class | HI PLAN |
| Maximum Numerical Aperture | 1.25 |
| Maximum Optical Magnification | 100 X |
| Condenser | Abbe |
| Condenser Positions | 4 |
| Has Eyepiece | Yes |
| Viewing Angle | 30, 45 |
| Fixed Eyepieces | 10×/20 |
| Adjustable Eyepieces | 16×/14 |
| LED Illumination System | Integrated, Independent, Combined |
| LED Service Life | 25000 hours |
| Incident Light Method | Brightfield, Polarisation, Oblique |
| Microscope Stage Type(s) | Manual |
| Focusing Torque Drive | Coaxial Focus Controls, Self-Adjusting Mechanism, 300 Micros Fine Focus, Calibrated in Micro Increments |
| USB-C Connections | 1 |
DM750 BF 4 Obj HI Plan Koehler Outfit
13613002
1
QTY
U.S. power cord
13613900
1
QTY
